Seaming Solid Surface

Tools Required

Adhesive and Dispensing Gun

Adhesive and Gun

Clamp Blocks

Clamp Blocks

Glue Gun

Glue Gun

Clamps

Clamps

Level

Level

Denatured Alcohol

Denatured Alcohol

Seaming using Clamp Blocks

        1. Before any seaming technique, it is wise to dry fit the pieces together to confirm you have straight seamable edges. Position the material next to each other and push the seamed edges together. You should see the seam almost disappear. If you see any gaps or chips, you will need to use a trim router and straight edge to clean and straighten you seam edge. Once your dry fit test looks good, pull your material apart slightly and proceed to the next step.

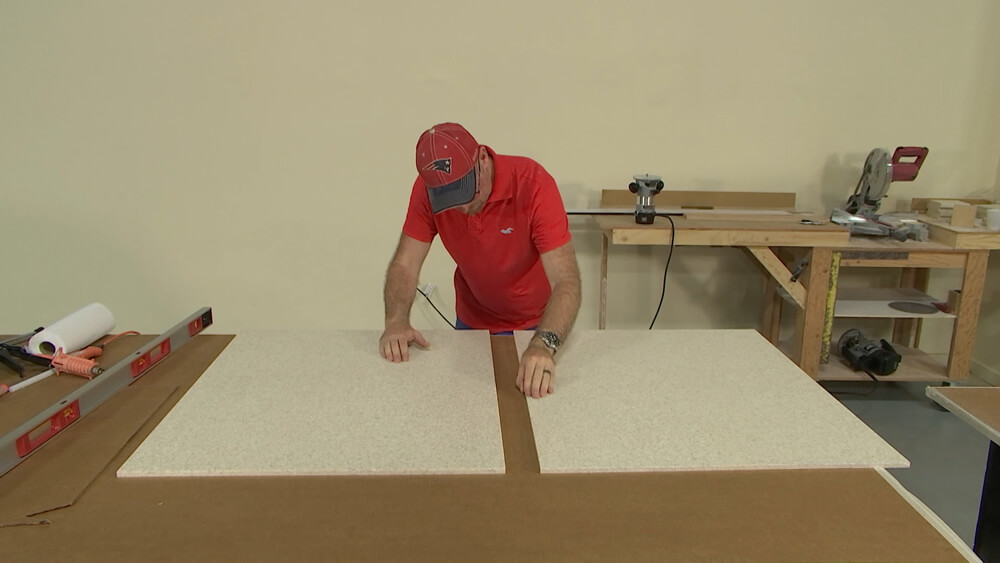

          Checking Edge Before Dry Fit

          Confirm Clean Edges

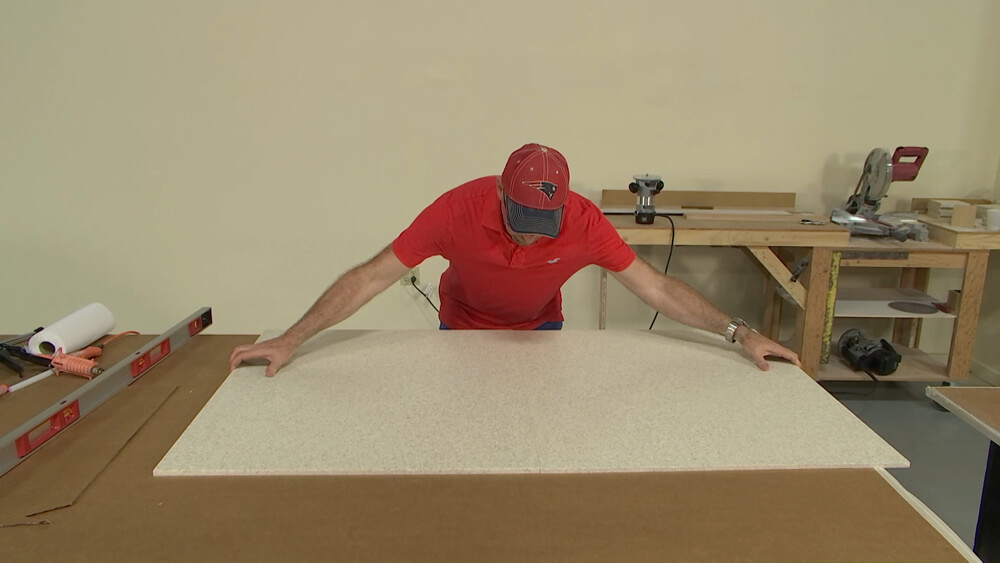

          Dry Fit Solid Surface Before Seaming

          Dry Fit

        2. Wipe area clean with denatured alcohol. Using a hot glue gun, attach clamp blocks on either side of your seam. There should always be a minimum of three clamp blocks (one on both ends and one in the center). For larger seams (greater than 30”) it is recommended to add additional blocks such that there is a clamp block at least every 10” along the seam.
          Wipe with Denatured Alcohol

          Wipe with Denatured Alcohol

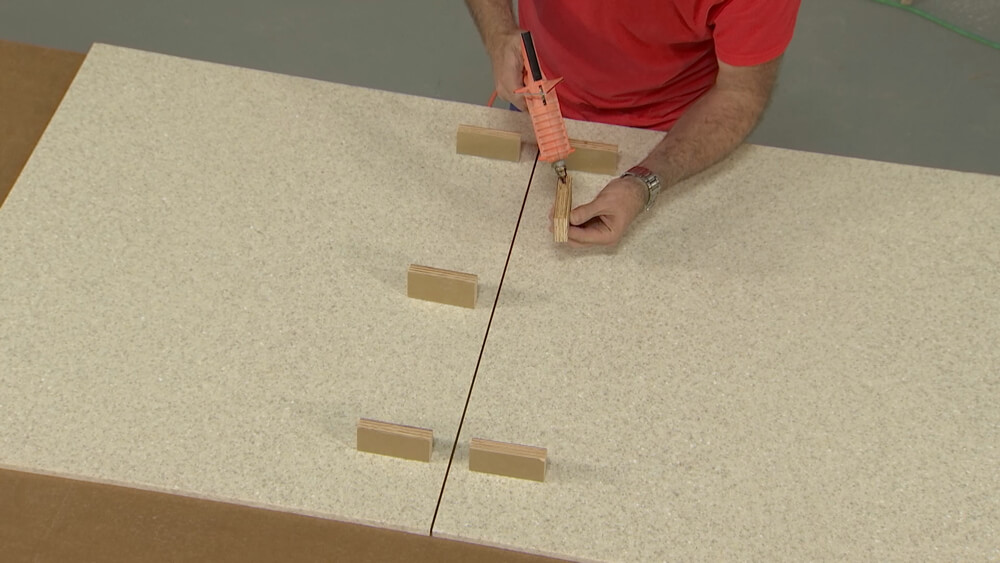

          Hot Glue Clamp Blocks

          Hot Glue Clamp Blocks

          Don't worry about the hot glue on your solid surface. You can easily chisel it off and clean with denatured alcohol.
        3. Place a strip of tape face down underneath the seam spanning the two sheets. This tape will keep the glue off the table and keep your material from adhering to your work surface. Wipe your seam edges with denatured alcohol to ensure they are free of all debris.
          Tape Below Seam

          Tape below Seam

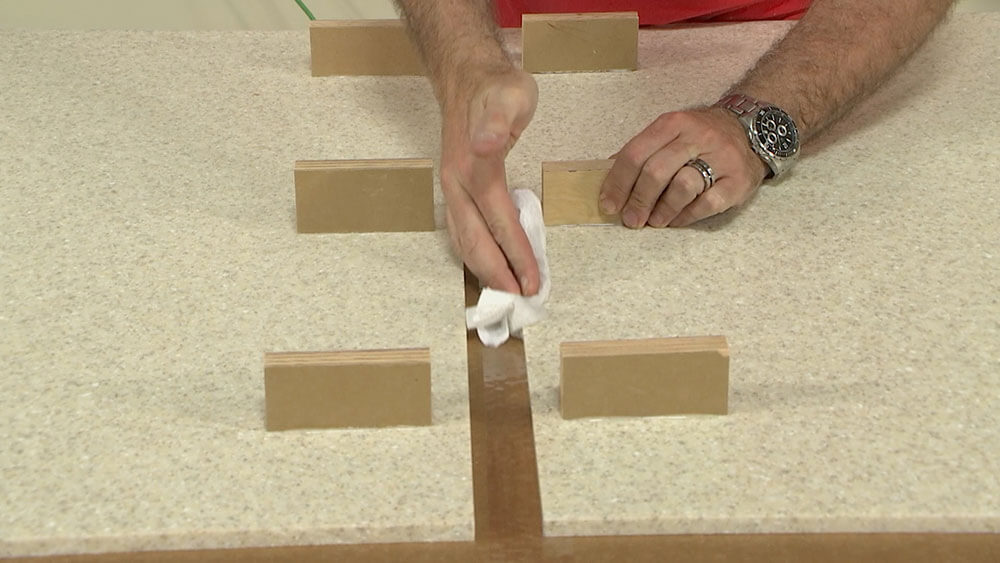

          Wipe Edge with Denatured Alcohol

          Wipe Down Edge

          Ready to Seam

          Ready to Seam

        4. Using your adhesive dispensing gun and mixing tips, dispense 5-10 inches of adhesive onto a piece of cardboard or scrap. Note the below image showing the visible difference in adhesive consistency once properly mixed. This step is critical as it ensures the two part adhesive is properly mixed. If ignored, your adhesive will not cure.
          Confirm both parts of adhesive are flowing

          Confirm Adhesive Properly Flowing

          Dispense Adhesive to Ensure Mixture

          Dispense to Ensure Mixture

        5. Apply ¼” diameter beads of glue along each seam face in turn. It is recommended to place the adhesive near the top of the first edge. This minimizes adhesive drip off the material while you apply adhesive to the other edge. It is important to apply adhesive to both edges. This ensures you aren’t light on adhesive (or adhesive activator) in one section of the seam.
          Apply Adhesive to Seam

          Apply Adhesive

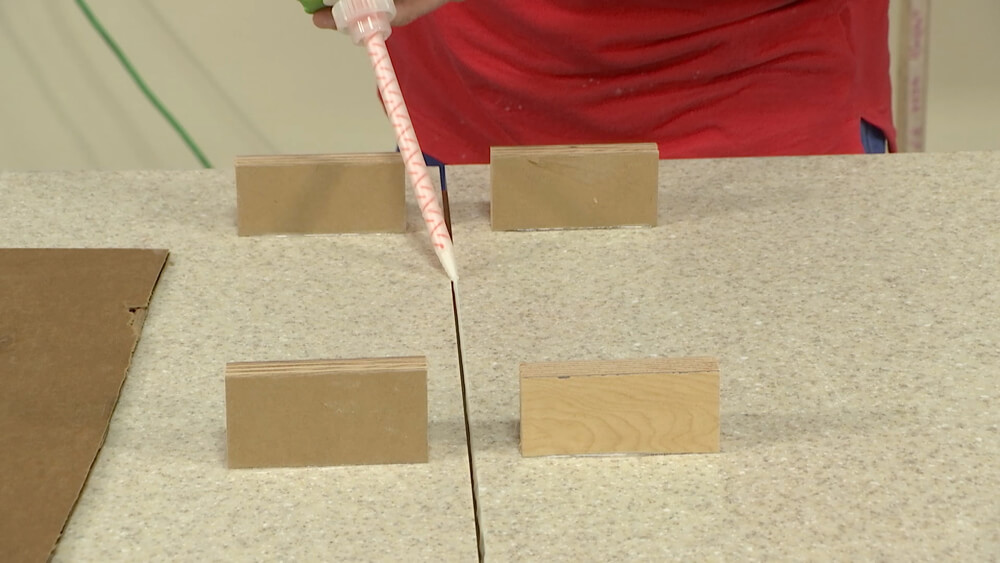

          Apply Adhesive Down Full Seam

          Consistant Bead Down Full Seam

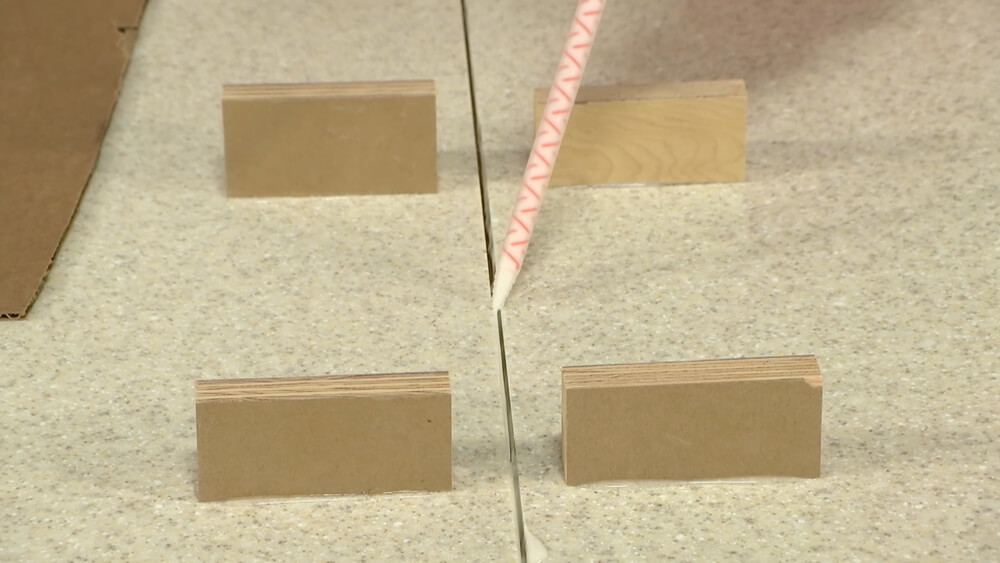

          Apply Adhesive On Both Sides

          Apply to both Sides at Top

        6. Press the two material pieces together and tighten down your clamp across the blocks. You will have some excess adhesive that is pushed up out of the seam. This "squeeze out" should be relatively consistent across the seam. You will also need to clamp down the other edges of your material to keep the sheet from trying to fold up on the seam.
          Tighten Clamps

          Tighten Clamps

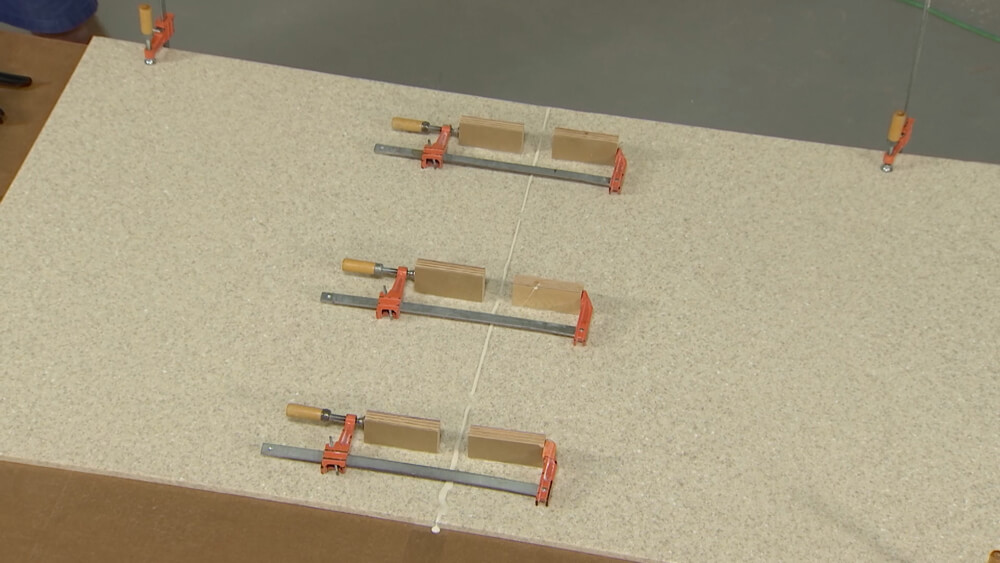

          Also Clamp Ends of Sheet

          Clamp Ends of Sheet

          Take care not to overtighten as this will cause too much adhesive to be expelled and can cause a weaker seam.
        7. After 45 minutes, remove clamps, knock off the clamp blocks and scrap excess glue off with a chisel.

          Remove Clamp Blocks

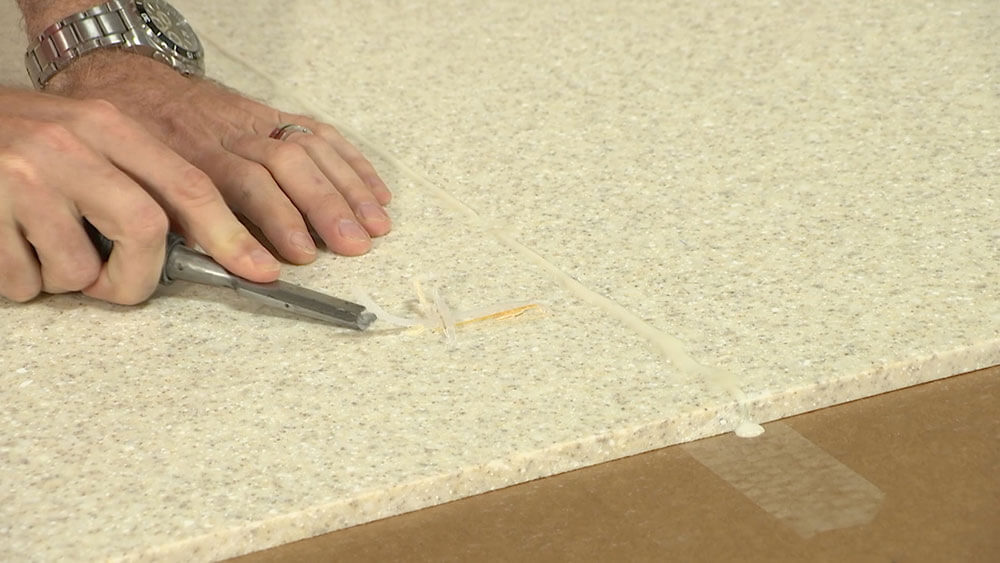

          Chisel Excess Glue

          Chisel Excess Glue

        8. Using and orbital sander, sand away the excess glue. Start with 80 micron pads, feathering out to each side roughly 4-6 inches. Next upgrade to 60 micron pads and sand out roughly 10-12 inches. At this point the seam itself should be nearly invisible.
          Sanding Away Glue Line
          Sanding Away Glue Line
          Sanding Away Glue Line
          Finished Seam
          The seaming process almost always occurs before your final polishing of the countertop surface. Because of this it is generally not critical to perfectly feather and blend the seam at this stage. Your goal at this point is primarily knocking off the glue line. The first step of the polishing process will be to sand to a uniform finish. You then use a sandpaper progression to polish to the desired finish. Once this is completed your material will be effectively "seamless".

Adding Seam Blocks

For structural integrity, it is wise to add a 2-3” wide seam block underneath the seam on the bottom of the countertop. Seam blocks are added after any edge buildup strips are added so that you know the appropriate length of the seam block.

    1. Measure the space between your edge finishing along your seam. Cut your seam block leaving 1/8" gap between the seam block and your edge buildups.
      Locate Seam Block

      Locate Seam Block

    2. Center the seam block on your seam. Hot glue stop blocks on either side
      Hot Glue Stop Blocks

      Hot Glue Stop Blocks

    3. Liberally apply adhesive to the underside of the seam block. Press into place between the recently added stop blocks.
      Apply Adhesive to Seam Block

      Apply Adhesive

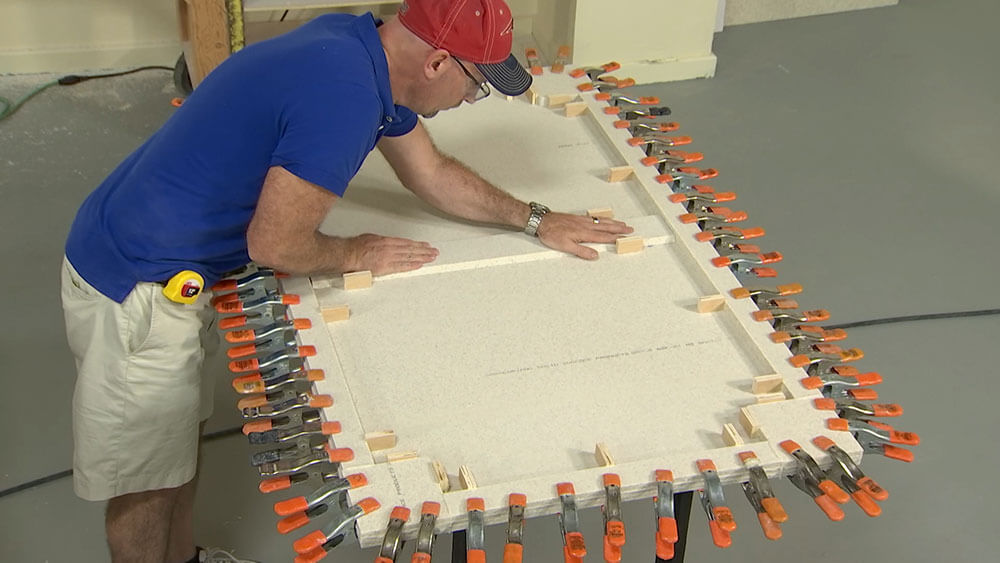

      Press Seam Block Into Place

      Press Into Place

    4. Clamp on either end of the stop block and in the center add a weighted item while the seam block cures.
      Clamp and Let Cure

      Clamp and Let Cure

      Note:Solid Surface fabrication manuals traditionally recommended cutting angles along the edges of the seam block(typical to above pictures). Many industry professionals still do this out of habit however the newest fabrication manuals now do not require this step.

Additional Seaming Notes

Seaming Expectations

Not all solid surface colors seam as easy as others. Solids and colors with smaller particulates are easily seamed such that even the most trained eye can't spot the seam. Conversely very large particulate patterns and patterns with grain directions are generally much harder to make appear “seamless”.

Solid Surface Color Seam Comparison

Do not try to seam factory edges

You should never try to seam an edge directly as it is delivered from the manufacturer. Reason being is the material has been handled and it is unlikely that the edge is smooth enough to be properly seamed. You must make one pass with a hand router to clean the edge before attempting a seam. View our article "Cutting Solid Surface" for more information.

Professional Tools

There are many sophisticated tools available for high volume production seaming of solid surface material. Some serve the simple purpose of holding the material together while the glue cures. Others help auto level the material which helps you avoid extra sanding post seaming.

While these tools are convenient, they are certainly not required. This is especially true for a single DIY solid surface project. Using simple clamp blocks and clamps (as described above) is a tried and true method used successfully on thousands of countertops.
